- Floorplan - 2016 Redwood RV Redwood 39FL
-
Sleeps 4
-
5 Slides
-
Front LivingRear Bedroom
-
42ft Long
-
13,904 lbs

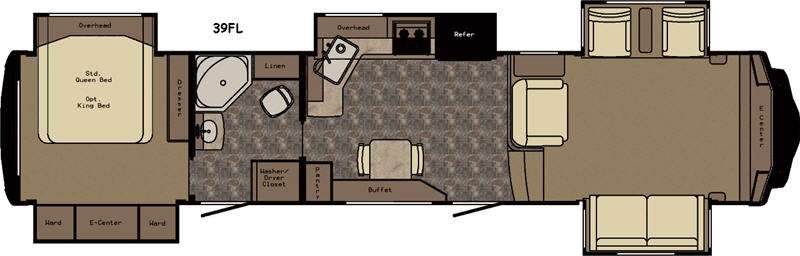

39FL Floorplan
Specifications
Sleeps | 4 | Slides | 5 |
Length | 41 ft 10 in | Ext Height | 13 ft 3 in |
Hitch Weight | 2196 lbs | GVWR | 16500 lbs |
Dry Weight | 13904 lbs | Cargo Capacity | 2596 lbs |
Fresh Water Capacity | 104 gals | Grey Water Capacity | 90 gals |
Black Water Capacity | 45 gals | Tire Size | 235/85 R16 “G” |
Furnace BTU | 40000 btu |
Description
Step into a spacious interior using the most forward side door. You will find yourself in the kitchen and dining area with a dinette and buffet to your immediate left through the door. There is also a large pantry for storing dry goods. The opposite side features a slide out refrigerator, three burner range, and large angled sink, plus overhead storage too.
Take the stairs to your right through the entry door to the open front living room entertainment area. Notice the convenient hand rail as you come up the steps on the left. There are also handy coat hooks as you come up the steps on your right. With a slide out on opposite sides, the entire floor space is left open for walking around and enjoying. In the very front there is a full wall entertainment area with storage, along the road slide find two recliners with an end table between in one slide. Opposite there is a slide out sofa. Along the rail that overlooks the kitchen and dining area there is a lounge chair and side table.
Back through the kitchen and dining area you find a pocket door that leads to the rear bedroom and walk through bath. There is a washer/dryer closet to the left through the door. Enjoy an angled shower, toilet, sink and linen cabinet in the bath area. There is also a second entry door across from the bath just before the bedroom door.
The rear bedroom feature a slide out queen bed, or optional king, with overhead storage. There is a slide out set of wardrobes opposite the bed with an entertainment center between featuring a 39" LED TV. You will also find a dresser along side the bed against the interior bedroom wall for your clothing, plus so much more!
Features
- Solid Cherry Hardwood Cabinetry
- Stiles Pre-Drilled & Screwed Together
- Residential Sized Storage Drawers w/ Solid Wood Bottoms
- Pots & Pans Storage
- Full-Extension Ball-Bearing Drawer Guides
- Residential Hidden Hinges
- EGS Steel Backed Cabinet Anchors
- Large Residential Pantry w/ Appliance Garage & 110v Outlet
- Corian® Countertops
- Corian ® Sink & Stove Covers
- Corian® Backsplash w/ Shelf
- Stainless Steel Oversized Divided Sink
- High Rise Faucet w/Pull Out Sprayer
- Over-Island Lighting
- 12 cu. ft. Norcold S/S Refrigerator w/ Ice Maker
- 3-Burner Flush Mount Stainless Stove
- 22” Deluxe Stainless Baker’s Oven
- 30” Stainless OTR Convection Microwave w/ Exhaust Fan
General Interior
- Straight Roof Line
- LED Recessed Ceiling & Accent Lights
- Solid Hardwood Slide Fascia
- 7’ Interior Slide Room Height
- 15,000 BTU WhisperQuiet A/C w/ Closed Zone Thermostat & Heat Pump (2nd A/C Std. in Bedroom)
- 40,000 BTU Furnace
- Shaw® Residential Carpet w/ Premium Pad
- Individually Hand-Laid Tile
- Central Vacuum
Living Area
- Diamond Collection Furniture Package:
- Residential Sofa (Hide-a-Bed option)
- Residential Wall-Hugger Recliners
- Buffet –Style Adjustable Dinette w/ Leaf Extensions
- 2 Premium Dinette Chairs
- 2 Folding Dinette Chairs
- Day/Night Roller Shades
- Premium Entertainment Center w/ Hidden Desk
- LG® LED HDTV
- Jensen® All-in-one Entertainment
- Interface (CD/DVD/Bluetooth/AM/FM) w/ Surround
- Pre-wired for Winegard® Satellite Systems
- Ceiling Fan
Bathroom
- One Piece Fiberglass Shower
- Niagara Waterfall Glass Shower Door
- Domed Skylight in Shower
- Porcelain Foot Flush Toilet
- Large Mirrored Medicine Cabinet
- Heat & A/C Duct in Bathroom
- Power Roof Vent
- Adjustable Handheld Shower Head
Bedroom
- 660” x 80” iCool™ Gel Foam Mattress
- 110v Outlets on Both Sides of Bed
- LED HDTV
- Residential Dresser w/ Drawers
- Walk-In Closet with Shelving (8 ft. wide) & A/C Vent
- Night Roller Shades
- 2nd 15k BTU WhisperQuiet Air Conditioner w/ Closed Zone Thermostat & Heat Pump
- Custom FIT Chassis
- Falcon 12”/10” I-Beam Drop Frame
- Roto-Flex Pin Box
- Falcon Hydraulic Slide Out System
- w/ Manual Override (Main Slides)
- Falcon 7,000 lb. Axles
- Equa-Flex Suspension System
- Correct Track™ Suspension Alignment System
- Falcon 6-Point Hydraulic Jacks w/Auto Leveling
- Falcon Aluminum 4-Step Entry
- Falcon 2” Receiver Hitch
Sidewalls
- 2” Laminated Wall
- Sanded Block Foam Insulation
- Double Welded Aluminum Frame
- Double Luan Backer
- T60 High-Gloss Gel Coat Fiberglass
Floor
- 5/8” Tongue & Groove Plywood
- 3” Aluminum Subfloor – 11” on Center
- 2 Layers of Batten Fiberglass Insulation
- 2 Layers of Flex Foil Insulation
- Darco Moisture Barrier
- Corrugated PVC Enclosure
- Fully Enclosed Underbelly w/Heated Tanks
Roof
- One Piece Alpha Superflex Roof Material
- 5” Galvanized Stamped Steel Trusses
- Double Trusses at each A/C
- 3/8” Plywood Roof Decking
- 2 Layers of Batten Fiberglass Insulation
- 1 Layer of Flex Foil Insulation
- Fully Walk-able
- Arched for Water Runoff
General Exterior
- Front & Rear Insulated Fiberglass Caps
- LED Pin Box Light
- Aerodynamic Profile
- Exterior Docking Station w/ All Hookups & Black Tank Flush
- Winterization Valve
- Slam Latch Baggage Doors
- Fully Finished, Heated & Insulated Pass-Through Storage
- 104 Gallon Fresh Tank
- (2) 45 Gallon Grey Tanks
- 45 Gallon Black Tank (2 on 39MB)
- Wastemaster Waste Mgmt. System
- Furnace-Heated Tank System
- 12 gal. Hot Water Heater
- Enclosed & Heated PEX Water Lines
- Seamless Residential Heat Ducts
- Radius Zoned A/C Ducting
- Kinro® Frameless Windows
- Carefree Adjustable Awning w/ LED Lights
- Progressive 90 Amp/12v DC Power Converter
- Energy Management System
- 50 Amp Detachable Power Cord
- Dual Battery Box
- 110v Exterior Receptacle
- Battery Disconnect Switch
- (4) G Range Tires (w/ Spare)
- 8 Lug Aluminum Rims
- 2” Self-Adjusting Drum Brakes
- (2) 30 lb. LP Tanks w/Auto Change Over
- R-42 Main Floor , R-28 Roof, R-21 Bath Deck, R-21 Front & Rear Caps, R-14 Slide Ends, R-9 Sidewall
Options
- Whirlpool 20 cu. ft. French Door
- Refrigerator w/Water & Ice
- 3 Burner Cooktop w/3 Drawers
- Fisher-Paykel Dishwasher
- 3rd 15,000 BTU A/C
- King Bed
- Hide-a-Bed Sofa
- Full Body Paint (Mandatory)
- Full Tile Flooring in Living Room
- 5100 BTU Fireplace
- 2-pc. Washer/Dryer
- MaxxFan – Kitchen
- MaxxFan – Bathroom
- Electric Induction Cooktop
- Theater Seating
- myRV™ Pad
- Dual Pane Windows (Mandatory)
- Trail-Air Tri-Glide Pin Box
- Water Filtration System
- 5.5 Onan LP Generator
- Generator Prep
- 40 lb. LP bottles
- Holding Tank Heating Pads
- Outside LP Grill Hookup
- Wireless Backup Camera
- Slide Awning Package
- 2nd Power Awning w/LED (select models)
- Uniguard Awning Upgrade(s)
- 32” Exterior TV (Mandatory)
- Goodyear “H” Tires
- 8000 lb. Axles
- Disc Brakes
- Slide-in-Slide (select models)
- Power Cord Reel - Electric
See us for a complete list of features and available options!
